Products Description

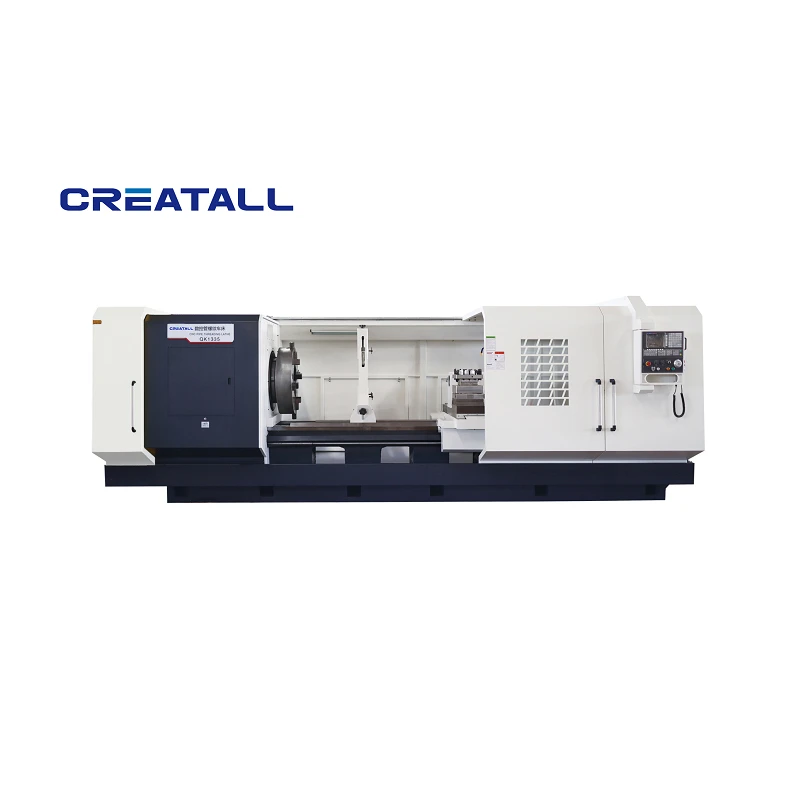

The QK1335 Automatic Machine Tool is a CNC lathe designed for machining large and heavy workpieces. It is primarily used for machining shafts, tubes, and round metal parts.

CNC Pipe Thrading Lathe Application

Item		Unit	QK1327	QK1330	QK1332	QK1335
Nc System			(Standard equipment): GSK980TDi (Alternative configuration): FANUC 0i-TF; SIMENS 808D; KND K1000Ti;
Max dia.swing over bed		mm	1000	1000	1000	1000
Max dia.swing over cross slide		mm	610	610	610	610
Max.length of work-piece		mm	1500	1500	1500	1500
Pipe threading range		mm	Φ70-275	Φ80-295	Φ80-320	Φ150-350
Width of bed		mm	755	755	755	755
Spindle bore		mm	280	305	325	360
Spindle center height		mm	500	500	500	500
Power of spindle motor		mm	22	22	22	22
Mode of spindle speed		mm	Two gears, smooth adjustment	Two gears, smooth adjustment	Two gears, smooth adjustment	Two gears, smooth adjustment
Range of spindle speed		r/min	(L):20-100 (H):100-300	(L):20-100 (H):100-300	(L):30-130 (H):65-260	(L):30-130 (H):65-260
Max.traverse of X/Z		mm	X:420 Z:1250	X:420 Z:1250	X:420 Z:1250	X:450 Z:1250
X/Z rapid traverse		mm/min	4000/5000	4000/5000	4000/5000	4000/5000
Tailstock quill	Diameter	mm	160	160	160	160
	Travel	mm	300	300	300	300
	Taper		Morse NO.6	Morse NO.6	Morse NO.6	Morse NO.6
Turret	Model		SLD170A	SLD170A	SLD170A	SLD170A
	No.of tool stations		Vertical four-station	Vertical four-station	Vertical four-station	Vertical four-station
	Dimension	mm	32×32	32×32	32×32	32×32
	Turret indexing time		4.9	4.9	4.9	4.9
Chuck			K72-780 four jaw chuck	K72-780 four jaw chuck	K72-780 four jaw chuck	K66-780 four jaw electric chuck
Positioning accuracy		mm	0.020	0.020	0.020	0.020
Repositioning accuracy		mm	0.01	0.01	0.01	0.01
Overall dimensions(LWH)		mm	4900×2200×2300	4900×2200×2300	4900×2200×2300	4900×2200×2300
Machine weight		T	8	9	10	12

Features

High Precision
The QK1335 Automatic Machine Tool for precise machining. Positioning accuracy reaches ±0.01 mm.

Powerful Machining Capacity
The machine bed offers a maximum swing stroke of 350 mm and a maximum machining length of 750 mm.

Powerful Spindle
The spindle speed range is 40–2000 rpm, covering both roughing and finishing.

Reliable Construction
The machine features a highly rigid cast iron bed, which reduces vibration and extends tool life, making it suitable for long-term, continuous operation.

Company Profile

Shandong Creatall Machine Tool Co.,Ltd is a professional machine tool manufacturing enterprise that integrates research and development, production, sales, and service.

The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, CE certification, and has multiple technical patents.

Our Factory

The factory has dozens of advanced mechanical processing equipment and nearly a hundred experienced technical processing personnel, production capacity of over 500 lathes per year, and the company has strong product research and development capabilities and production manufacturing capabilities.

FAQ

Q: What is the package of the machines?

A: The machines standard packed by iron pallets with steel box, high quality package to reduce the risk of damage during delivery.

Q: When is the delivery time?

A: Conventional Machines, We will delivery then within 30-45 working days after received your deposit, if some special machines will be some longer. we will give you the answer accordingly.

Q: What is the payment Terms ?

A: T/T, 30% initial payment when order, 70% balance payment before shipment.

Q: What CNC system do you use?

A: FANUC, SIEMENS, MISTSUBISHI, LNC, SYNETC, GSK, etc.
