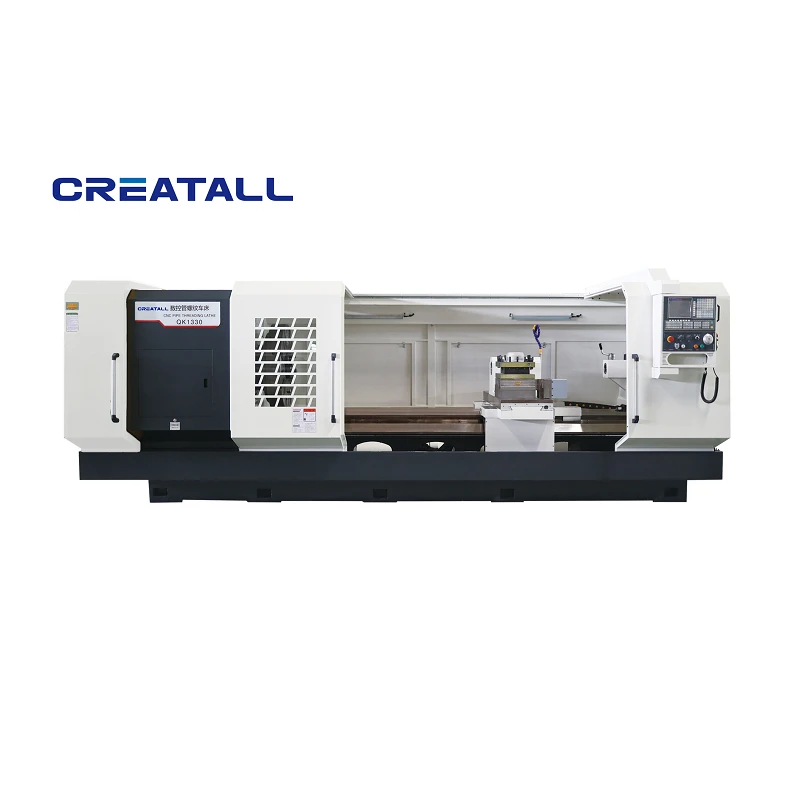

QK1313 Automatic Pipe Threading Machine

QK1313 Automatic Pipe Threading Machine

QK1313 automatic pipe threading machine is a CNC machine tool specially designed and manufactured for the thread processing requirements of oil pipelines, drill pipes and casings in petroleum, chemical and metallurgical industries. , external thread, and has the functions of ordinary CNC lathes. Process adaptability, high efficiency, low waste, product consistency, and can reduce the degree of skilled worker requirements. Easy programming, simple operation.
Send Inquiry

↵

Shandong Creatall Machine Tool Co.,Ltd





Shandong Creatall Machine Tool Co.,Ltd is a professional machine tool manufacturing enterprise that integrates research and development, production, sales, and service. The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, CE certification, and has multiple technical patents. Our products comply with international standards and advanced industrial standards of developed countries, and we have the right to self operate import and export.



Why Choose Us?



Large Equipment Assurance
The company uses a gantry machining center to complete the machining of the bed guide rails in a single pass, maintaining guide rail parallelism and perpendicularity within 0.02mm, ensuring stable and reliable assembly accuracy.



Full-Process Inspection
Each machine undergoes positioning accuracy and roundness testing using a laser interferometer and ballbar before shipment. This, combined with extended dry runs, ensures consistent machining of all products.



Remote Program Recovery
The product comes with a PLC and system backup solution. Our technical team supports remote program recovery and online debugging, enabling rapid response to system anomalies and minimizing after-sales downtime.





What is QK1313 Automatic Pipe Threading Machine





The QK1313 Automatic Pipe Threading Machine is a CNC machine used for automatically processing pipe threads. It is suitable for efficient thread cutting operations on small and medium-sized pipe fittings in industries such as oil and gas.



Benefits of QK1313 Automatic Pipe Threading Machine




Stable Machining Precision
The machine utilizes a high-rigidity, integrated cast iron structure, equipped with an imported encoder and servo system, achieving an X/Z-axis positioning accuracy of ±0.01mm, effectively controlling thread profile errors.



High Operating Efficiency
The spindle system features two-speed stepless speed regulation and a large through-hole structure, enabling rapid switching between different pipe diameters. Combined with a quick tool change mechanism, it increases throughput per unit time.



Strong Process Adaptability
By replacing standard tools and switching machining programs, the machine can quickly adapt to various thread standards and specifications.



Highly Intelligent
Equipped with a multi-brand compatible CNC system, it offers features such as automatic programming, tool breakage detection, and zero-point recovery.




FAQ


Q: What precautions must you observe when operating a QK1313 automatic threading machine?

A: Always read the instruction manual for your pipe threading machine completely before attempting to operate the machine. Always wear suitable eye protection when operating a pipe threading machine. Always use a brush to clean chips out of the die head.

Q: What is the function of QK1313 automatic pipe threading machine?

A: Automatic pipe threading machine is designed to process NPT or BSPT thread on pipe ends. It features compact cast aluminum base, powerful motor & transmission system, and adjustable oil flow, so to assure high working efficiency.

Q: How does an QK1313 automatic threading machine work?

A: An automatic threading machine works by securing the workpiece in a chuck or collet and rotating it while a cutting tool moves along the material to create threads. The machine uses pre-programmed instructions to control the movement of the cutting tool and the rotation speed of the workpiece.

Q: What types of threads can be created with an QK1313 automatic threading machine?

A: External Threads: Threads on the outside of a workpiece, such as bolts or pipes. Internal Threads: Threads on the inside of a workpiece, such as nuts or threaded holes. Tapered Threads: Threads that taper in diameter along the length of the thread, commonly used in piping systems. Metric and Imperial Threads: Threads that adhere to either metric or imperial measurement standards.

Q: What are the benefits of using an QK1313 automatic threading machine?

A: The benefits of using an automatic threading machine include increased productivity, consistency, and precision in threading operations. These machines reduce manual labor, minimize the risk of human error, and can handle complex threading tasks with ease.

Q: How do you ensure the accuracy of threads produced by an QK1313 automatic threading machine?

A: Regularly calibrate the machine and tools. Tool Inspection: Use sharp and well-maintained cutting tools. Ensure correct alignment and secure mounting of workpieces. Use accurate CNC programs with precise instructions.

Q: What types of materials can be threaded with an QK1313 automatic threading machine?

A: An automatic threading machine can thread various materials, including metals (such as steel, stainless steel, aluminum, and brass), plastics, and composites. The choice of cutting tools and machine settings will vary based on the material being threaded to ensure optimal performance and thread quality.

Q: What is the maximum pipe size that can be threaded with an QK1313 automatic threading machine?

A: The maximum pipe size varies by machine model. For example, some machines can handle pipes up to 6 inches in diameter, while others may accommodate larger sizes. Refer to the machine's specifications for exact capabilities.

Q: How do you load and unload pipes on an QK1313 automatic threading machine?

A: Place the pipe in the chuck and tighten it securely. Ensure the pipe is properly aligned with the threading tool. After threading, loosen the chuck and carefully remove the pipe.

Q: What are the benefits of using an automatic threading machine over manual threading?

A: Faster threading processes. Higher accuracy and consistency. Reduced manual labor and operator fatigue. Ability to handle various thread types and sizes.‌
